Labels
Add label
Remove label
Edit label
Move label

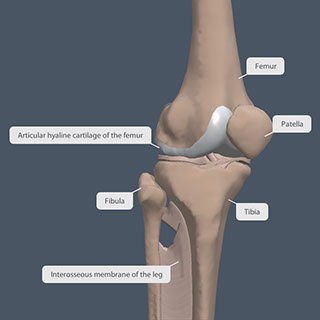

Labels can be added to the 3D model by clicking
Add label, and selecting any structure. The labels will display the name of the structure they are associated with and will move around with the model as it is manipulated.
Each label can be edited by clicking the Edit label button and altering the text. It can also be moved by clicking Move label, selecting the label you wish to move, then clicking again in the new position.
Labels can be deleted by clicking Remove label, or hidden completely by closing the Edit panel.
Click on the link below for a video demonstration of
their functionality:
Pins
Add pin
Remove pin
Edit pin
Pins can be added to the 3D model by clicking Add pin, and selecting any structure. The pins will display the name of the structure they are associated with.
Each pin label can be edited by clicking the Edit pin button and altering the text.
Pins can be deleted by clicking Remove pin or hidden completely by closing the Edit panel.
Tip
Pin labels can be temporarily hidden by clicking on the pin or label, and revealed again by clicking on the pin once more.
Click on the links below for a video demonstration of their functionality:
Edit and drawing tools
Add text box
Draw line
Draw arrow
Draw freehand
Eraser
Annotate the model with lines or arrows, by using the Draw line or Draw arrow tools. The color of the lines can be changed using the Color picker, and the thickness using the Line thickness controls. Use the Draw freehand button to circle or draw on a structure. To remove any mistakes, use the Eraser.
Click on the link below for a video demonstration of their functionality:
Erase all
Erase all
The Erase all button clears all pins, labels, lines, arrows and annotations from the viewpane.
Lock drawing
Lock drawing
If you wish a drawing to remain visible when the Customization tools panel is closed, click on the Lock drawing button. You will still be able to add to or change the drawing when you open the Customization tools panel again. Click on the button again to unlock the image.
Click on the link below for a video demonstration of this functionality:
